ggragged 0.2.0 hit CRAN earlier this week. This release gives you more control over how axes and panel strips are drawn, along with a new layout option.

You can install it with:

install.packages("ggragged")

New features

ggragged facets, like those that come with ggplot2, by default try to reduce visual clutter in the layout caused by excessive graphical elements. Axes and panel strips are removed when they’re shared between adjacent panels.

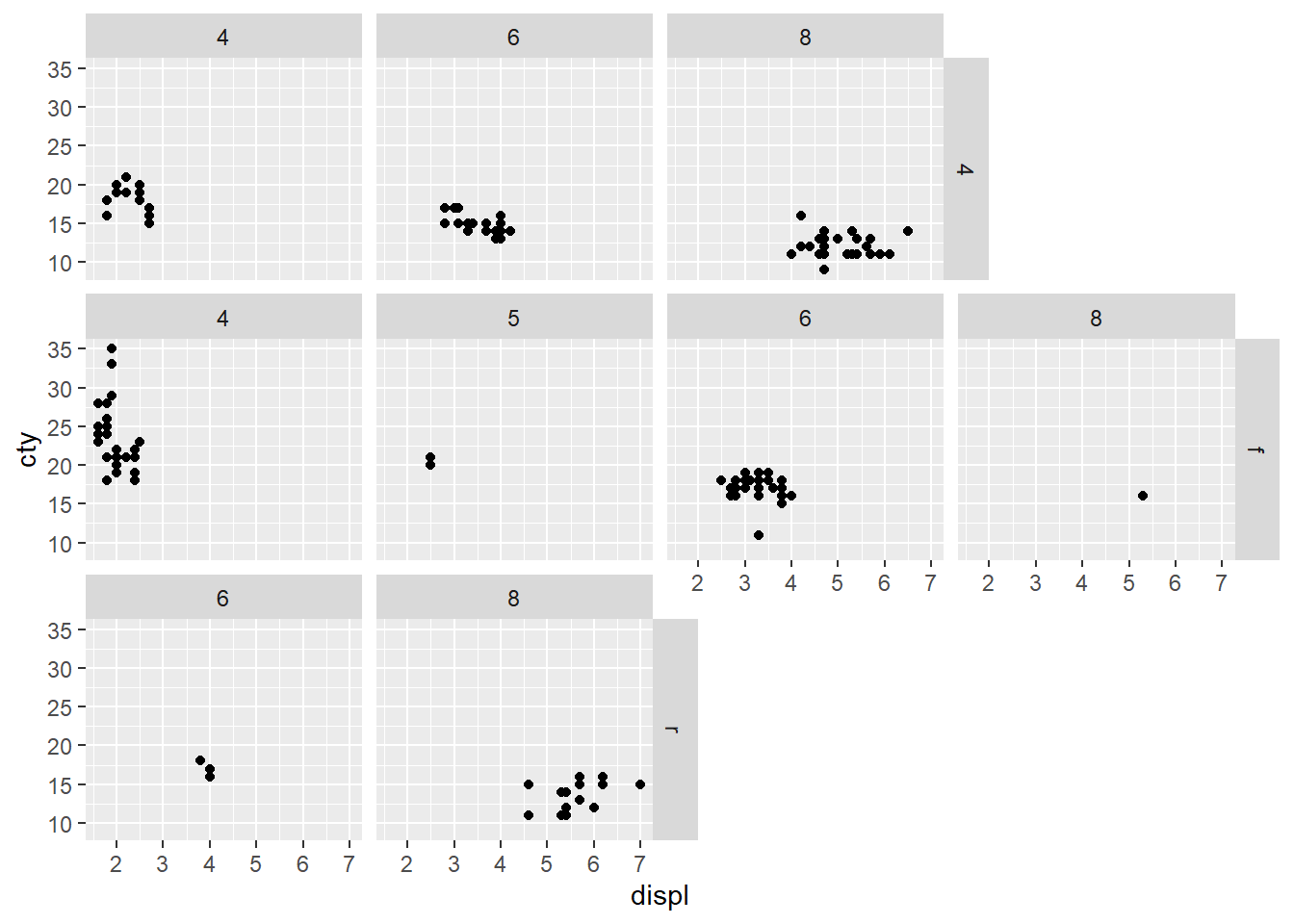

As a baseline, let’s first look at the default behaviour:

library(ggplot2)
library(ggragged)

p <- ggplot(mpg, aes(displ, cty)) + geom_point()
p + facet_ragged_rows(vars(drv), vars(cyl))

With the new axes and strips parameters you can customise the de-cluttering process.

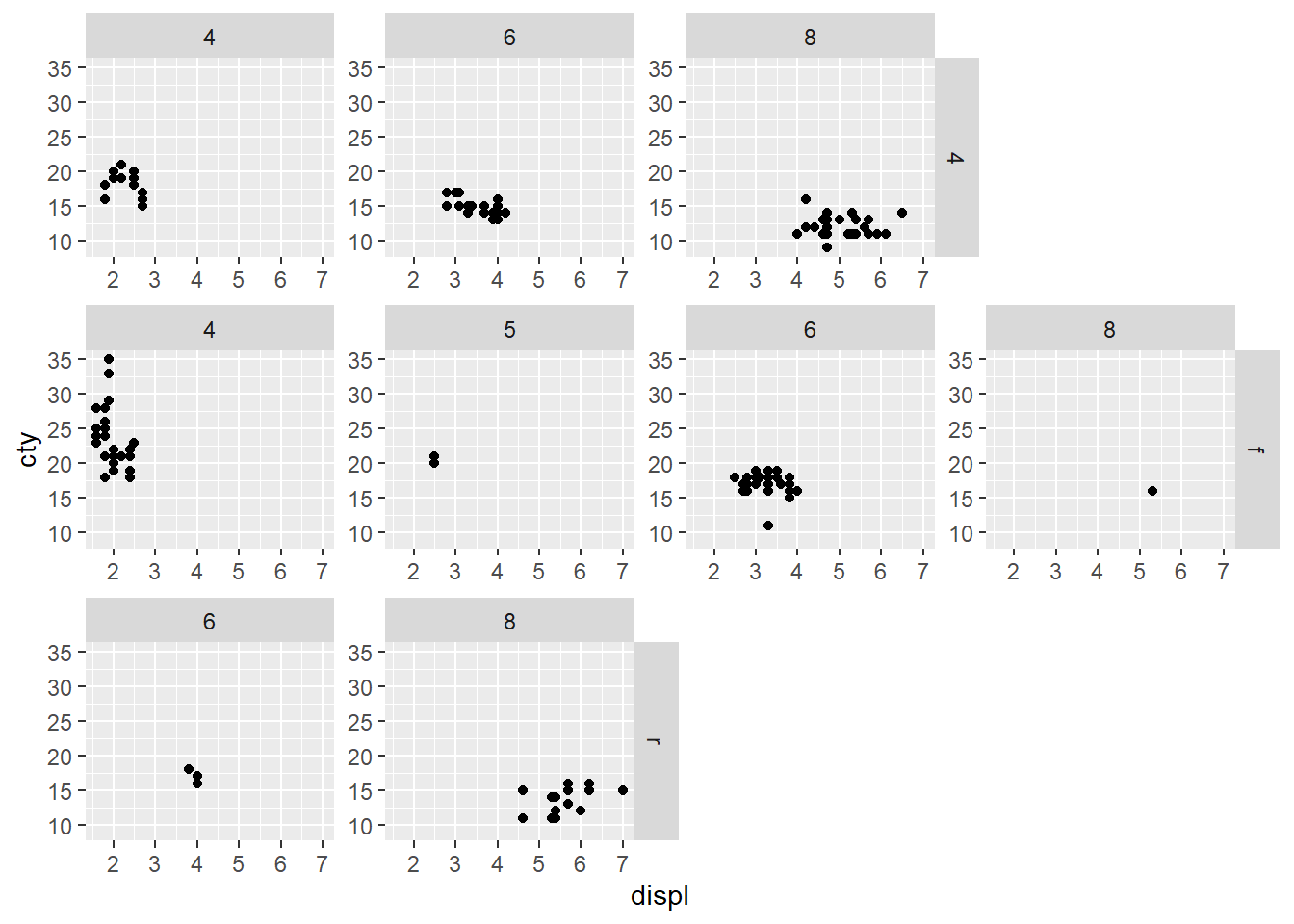

The axes parameter works like the same in built-in ggplot2 facets since 3.5.0. It lets you request that particular axes are always drawn, regardless of whether or not shared by an adjacent panel. You can for example set axes = "all" to draw both axes for all panels:

p + facet_ragged_rows(vars(drv), vars(cyl), axes = "all")

Other options are "all_x" and "all_y" if you only want one of the axes to always be drawn.

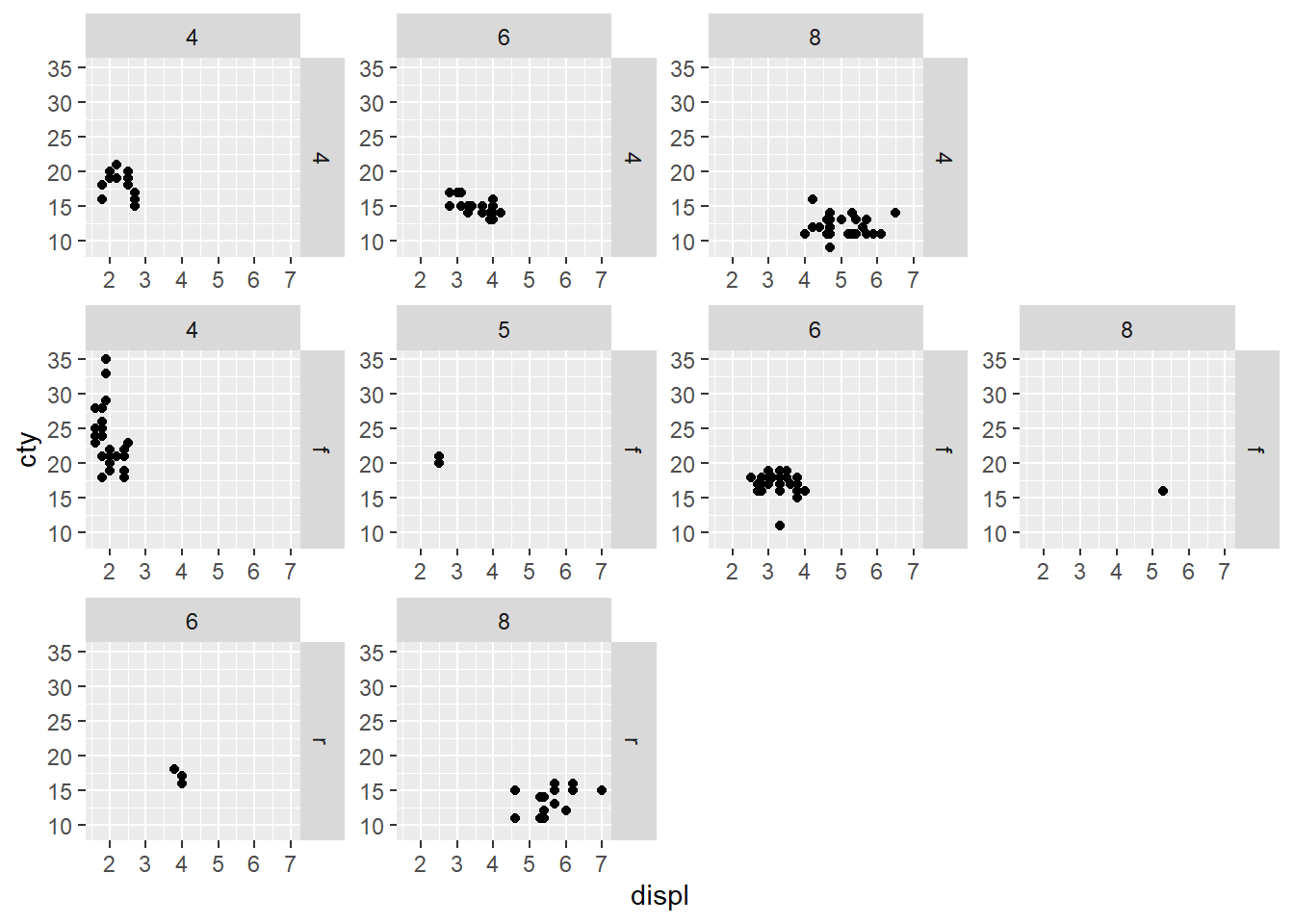

Similarly, using strips = "all" will draw strips around all panels, even those on the same row:

p + facet_ragged_rows(vars(drv), vars(cyl), axes = "all", strips = "all")

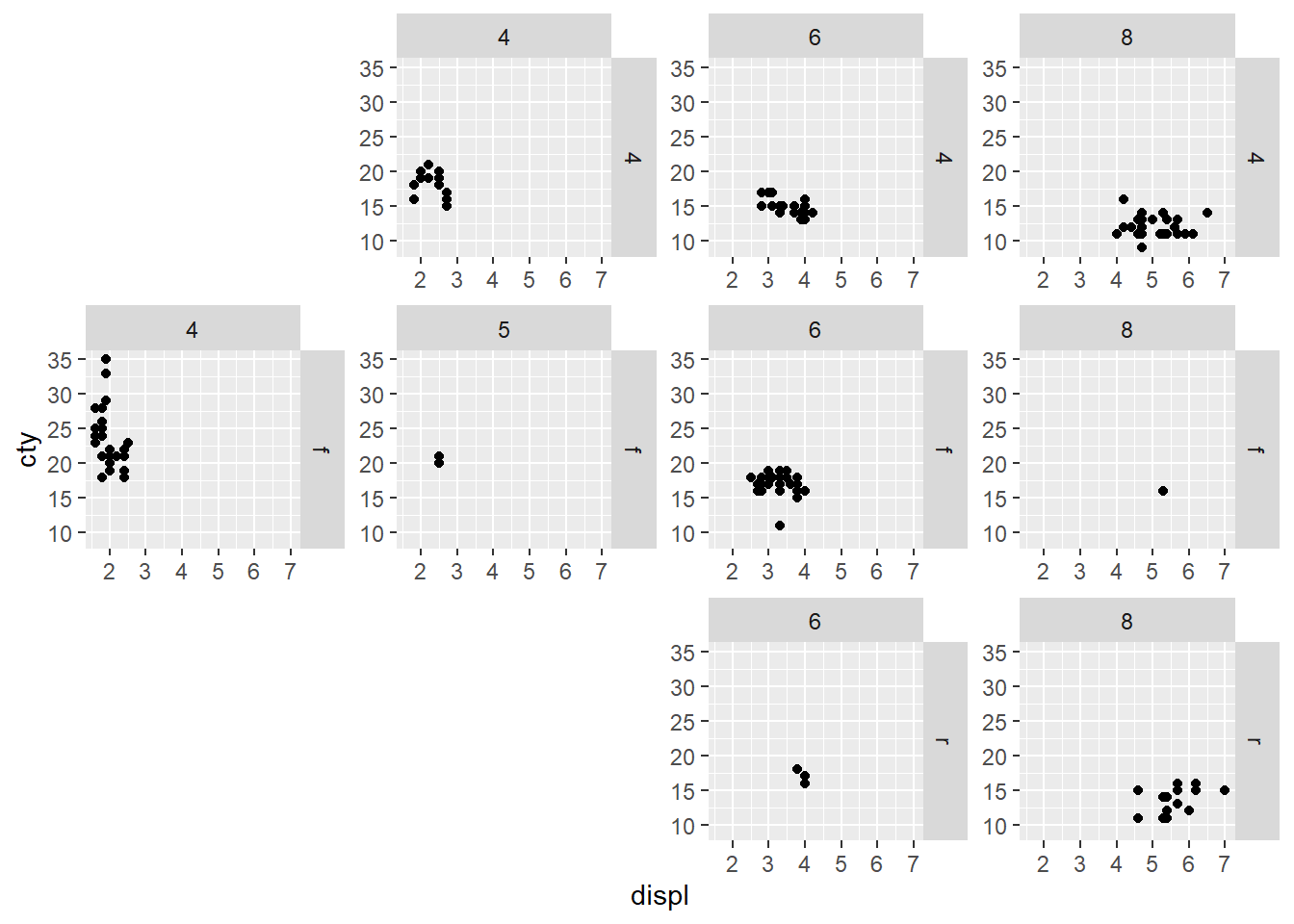

The third new parameter, align, gives you a little more control over the panel positioning. You can now align the panels to the right of rows or to the bottom of columns by setting align = "end":

p + facet_ragged_rows(vars(drv), vars(cyl), axes = "all", strips = "all", align = "end")

Other news

Prompted by a bug report and fix, the panel rendering logic was fully rewritten in this release.

Previously, panel rendering was delegated to FacetWrap, with some post-processing done to add missing elements. This always felt like a bit of a hack to me. It didn’t really allow easily extending ggragged with new features, and I never could figure out how to resolve obvious code duplication between the row and column layouts with that approach.

Now gggragged implements the full panel rendering itself without the need to call on other facets. The new logic follows the architecture coming to ggplot2 in the development version, which made the refactoring process a lot easier than I had feared. It also allowed me to consolidate the core of the rendering logic to a shared FacetRagged class, with the row and column variants only implementing slight tweaks to achieve their characteristic results.

Overall I’m really happy with how the code base turned out after these changes, and I’m confident this puts the package on stable ground for future development. I’ve done quite a bit of testing to ensure I didn’t miss any features that rendering via FacetWrap was giving for free. But if you spot something I did miss, I’d really appreciate it if you would open an issue on GitHub to let me know.
